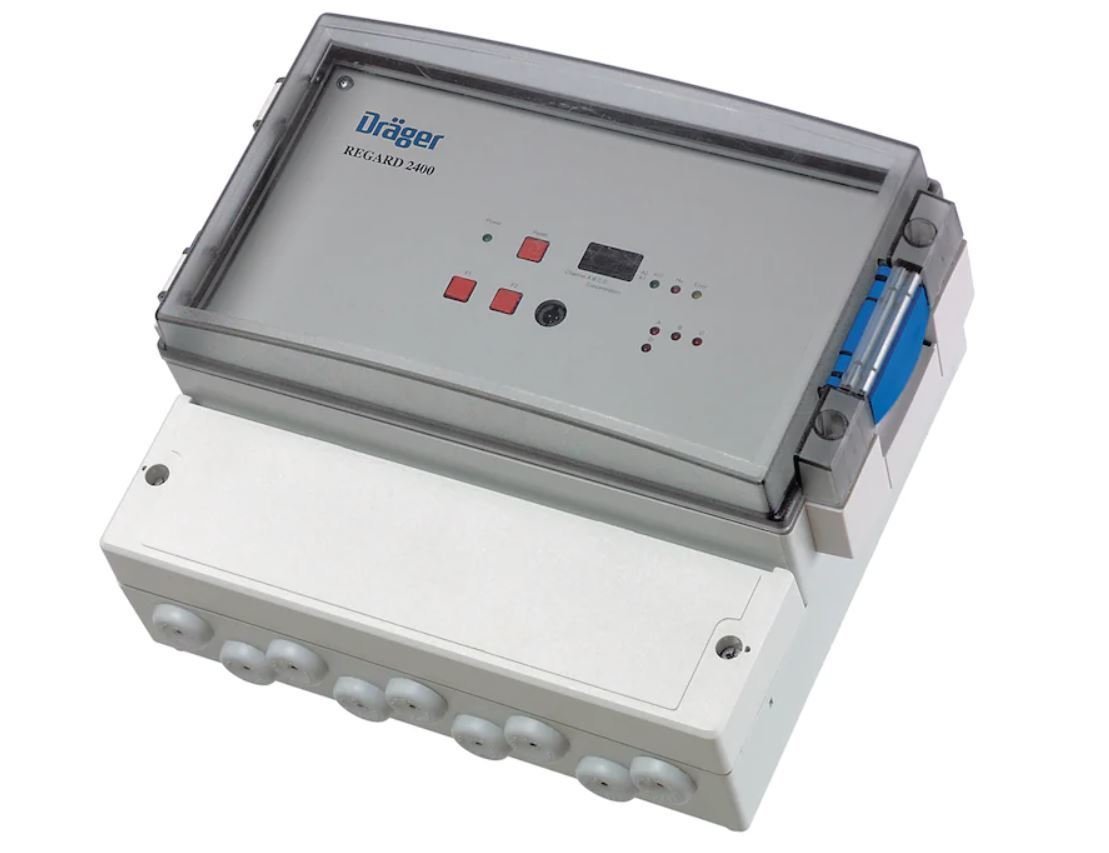

Drager Regard 2400/2410 Kontrol Paneli
Drager Regard 2400 Kontrol Ünitesi 4 adet dedektör bağlanabilen ve röle çıkışı bulunan ekonomik bir kontrol panelidir. Drager Regard 2400 kontrol panelinde veri kayıtları tutulabilmekte, isteğe bağlı olarak ara yüz kablosu ile kontrol panelinin içerisinde ki veriler bilgisayarlara çekilebilmektedir. ATEX performans onaylı kontrol ünitesidir.
TEKNİK ÖZELLİKLER
Central unit: Independent 4-channel wall-mounted (2400) or rail-mounted (2410) control unit in accordance with DIN EN 50022
Power supply:
24 VDC +/– 10 % (2410)
24 VDC / 110 to 230 VAC 50 to 60 Hz (2400)
Inputs: 2-wire/3-wire 4 to 20 mA transmitter or Drager Polytron SE Ex sensing heads via signal
converter (optional)
Outputs: Potential-free relay contacts of the 2 gas alarm relays plus one acoustic alarm relay and
one failure relay each for 250 VAC, 2 A (2400 DPCO and 2410 SPCO)
Ambient conditions:
Temperature: – 20 to + 60 °C
Atmospheric pressure: 700 to 1300 hPa
Atmospheric humidity: 10 to 90 %, non-condensing
User interface:
3-pushbutton operation
Dot-matrix display, LEDs
RS 232 for configuration software
Modbus interface
Dimensions:
Drager REGARD® 2410 105 x 86 x 72 mm (W x H x D)
Drager REGARD® 2400 185 x 213 x 118 mm (W x H x D)
Ingress protection:
Drager REGARD® 2410 IP 20
Drager REGARD® 2400 IP54
Approvals:
ATEX:
Ex II (2)G, TPS 14 ATEX 1 672 X
According to EN 60079-0:2012, EN 60079-0/A11:2013, EN 60079-29-1:2007,
EN 50271:2010 and EN 50104:2010
CE markings:
Electromagnetic Compatibility (Directive 2014/30/EU; EN 50270:2006)
Low Voltage (Directive 2014/35/EU; EN 61010-1:2010)
Functional Safety: SIL 1
